Hongnuo (shenyang) General Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of smar temperature transmitter in China. Welcome to buy high quality smar temperature transmitter at competitive price from our factory. We also accept customized orders.

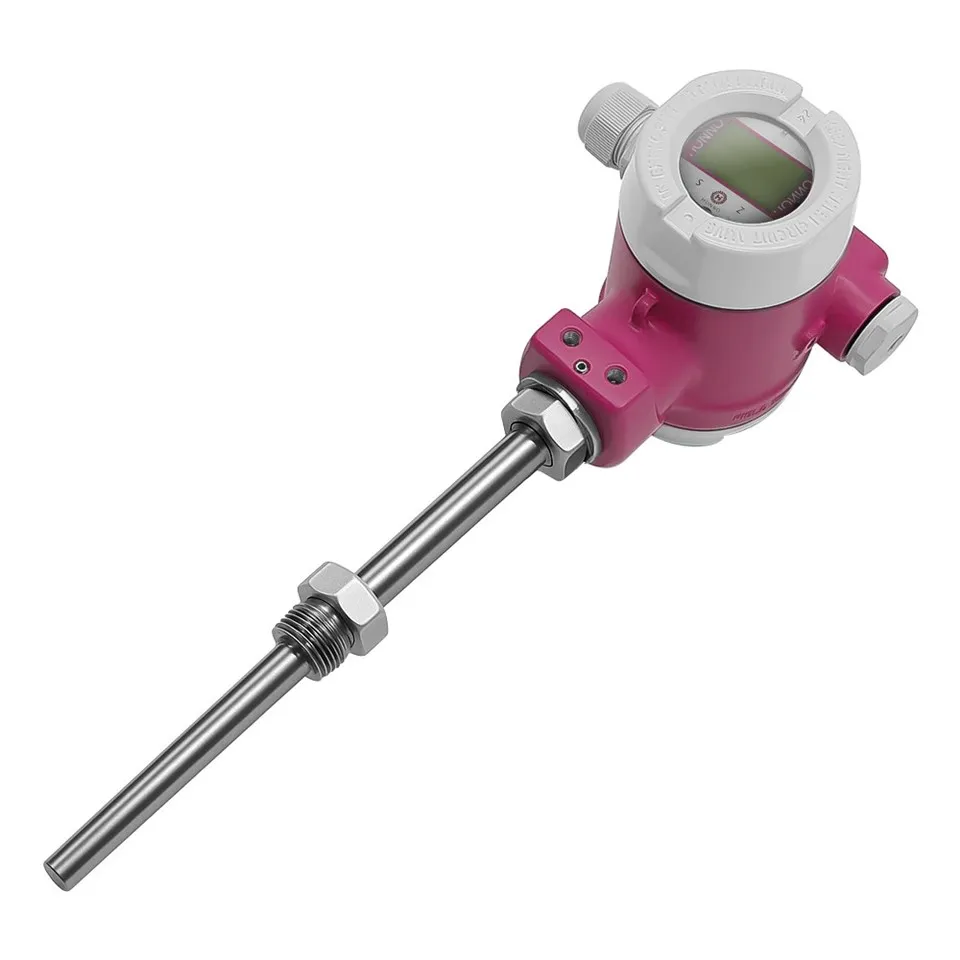

The HNT40 intelligent temperature sensor is a high-precision temperature measurement device adaptable to various operating conditions. Designed for complex industrial environments, it utilizes a dedicated integrated circuit and surface-mount technology for its signal transmission module, achieving accurate temperature signal acquisition and stable transmission. This provides a flexible and reliable integrated solution for fluid temperature measurement. The product's measurement range covers -50~400℃, supports °F and K unit conversions, and has a minimum settable range of 100℃. Typical accuracy reaches ±0.5% of the upper limit of the range, with annual stability better than 0.05% of the upper limit or 0.1℃/year (whichever is greater). It is minimally affected by ambient temperature, power supply, and load, combining measurement accuracy with long-term stability.
It offers diverse output options, including 4-20mA two-wire, 4-20mA+HART two-wire, and Modbus-RTU/RS485 four-wire, meeting various industrial communication needs. Transmission distances reach up to 1000 meters, and power consumption is as low as ≤500mW@24VDC. The product features an integrated transient voltage resistant terminal block with a differential mode voltage of 2000V and a common mode voltage of 4000V, meeting the Class IV standard and easily handling severe surge voltage scenarios. An optional backlit LCD display module with button operation is available for convenient use.
It boasts excellent installation adaptability, with no specific installation orientation requirements, allowing flexible installation at process connection points such as pipes and tanks. It supports various mechanical connection methods including metric, imperial, and American standard threads, as well as GB and ASME flanges. Probe specifications and lengths can be customized. The thermal protection sleeve features excellent response time, and the minimum insertion depth adheres to industry standards, adapting to different media flow rates, process pressures, and process parameters. The product is CE certified, exhibits excellent adaptability to storage and operating environments, and is widely applicable to various industrial temperature measurement conditions, making it a preferred temperature measurement device in the process control field.
|
HNT40 Smart Temperature Sensor |
|
|
Specific Parameters |
Value / Description |
|
Measurement Principle |
The signal transmission module employs application-specific integrated circuits (ASICs) and surface-mount packaging technology, and optionally includes a built-in LCD display module with backlight and button operation. |
|
Application and Industry |
Widely applied in industrial production, food processing and other fields |
|
Measurement Range |
-50~+400℃(-58°F ～ +752°F),Customizable |
|
Probe Rod Length |
0~300 mm, customizable |
|
Probe Diameter |
φ6/φ8/φ10/φ12/φ16 |
|
Probe Length |
25mm/50mm/80mm/100mm,Customizable |
|
Probe Rod Material |
316 stainless steel |
|
Load Impact |
≤ ±0.02% of the upper limit of the range / 100Q (data referenced to full-scale output 20mA) |
|
Environmental Temperature Impact |
≤+0.005% upper limit of range/°C, reference temperature 22°C |
|
Power Impact |
≤ ±0.01% of the upper limit of the range/V, reference voltage 24V (data refers to full-scale output 20mA) |
|
Range and Limit of Scale |
-50-400°C((-58°F ～ +752°F)), minimum measuring range 100°C(212°F) |
|
Transmitter Housing Material |
|
|
Connection Method |
Threads/Flanges |
|
Environmental Conditions |
Operating ambient temperature range: -40-85°C; Integrated LCD display: -20-70°C |
|
Outputs |
4-20mA (two-wire), 4-20mA+HART (four-wire), Modbus-RTU/RS485 (four-wire) |
|
Protection Level |
IP67 |
|
Power Supply |
Standard: 10-30VDC |
|
Product Safety |
CE certified |
|
Functional Safety |
Complies with IEC 61508 standard, allowing use in safety applications specified in IEC 61511 standard |
